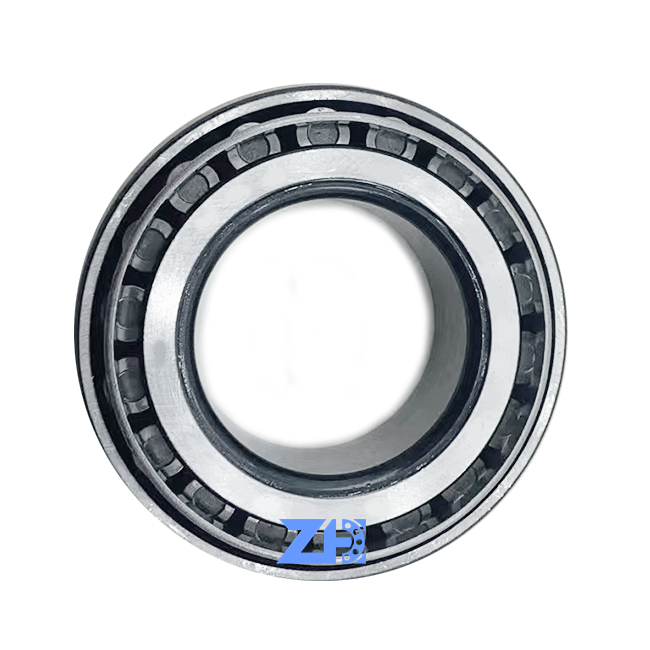

    25584/25520 25584-25520 tapered roller bearing stamped steel cage metric size conforms to ISO standard

    Ask Lasest Price
    Model Number : 25584-25520
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 1000 pieces/month
    Delivery Time : 2-5 days
    Brand Name : ZH
    • Product Details
    • Company Profile

    25584/25520 25584-25520 tapered roller bearing stamped steel cage metric size conforms to ISO standard

    25584/25520 25584-25520 tapered roller bearing stamped steel cage metric size conforms to ISO standard


    Product Description

    Product name25584-25520
    MaterialCHROME STEEL
    Number Of Rowsingle column
    qualityGood quality
    Place of OriginChina
    PaymentT/T Paypal Western Union Trade assurance
    Packingbags,carcon box,wooden case or as requested

    R25/26SF4019PX1SF4852PX1
    R25/26BA200-6A(SF4021)BA245-2
    SF3240SF3227PX1/SF3215245BA35
    BA195-3165BA210/AC3321BA246-1SA
    SF4852/SF4815BD165-6A(3321)BA246-2SA/SF4903


    structure in size


    Dimensions

    d - Bore

    1.7710 in44.983 mm

    D - Cup Outer Diameter

    3.2650 in82.931 mm

    B - Cone Width

    1 in25.4 mm

    C - Cup Width

    0.7500 in19.050 mm

    T - Bearing Width

    0.9375 in23.813 mm

    Abutment and Fillet Dimensions

    R - Cone Backface "To Clear" Radius10.06 in1.5 mm
    r - Cup Backface "To Clear" Radius20.03 in0.76 mm

    da - Cone Frontface Backing Diameter

    2.01 in51 mm

    db - Cone Backface Backing Diameter

    2.09 in53.0 mm

    Da - Cup Frontface Backing Diameter

    3.05 in77.00 mm

    Db - Cup Backface Backing Diameter

    2.91 in73.91 mm

    Ab - Cage-Cone Frontface Clearance

    0.06 in1.5 mm

    Aa - Cage-Cone Backface Clearance

    0.01 in0.3 mm
    a - Effective Center Location3-0.25 in-6.4 mm

    We can provide different types of deep groove ball bearings, including bearings, cylindrical roller deep groove ball bearings, tapered roller deep groove ball bearings, self-aligning ball deep groove ball bearings, angular contact ball deep groove ball bearings, thrust ball deep Groove ball bearings, thrust roller deep groove ball bearings, deep groove ball bearings with housings, needle roller deep groove ball bearings, joint deep groove ball bearings, high temperature resistant deep groove ball bearings, stainless steel deep groove ball bearings, plastic Deep groove ball bearings, ceramic deep groove ball bearings, adapter sleeves, linear deep groove ball bearings


    Q1: I know only the excavator model, but can not offer parts No., what should I do ?
    A1: If possible, you can send us the old photo, nameplate or the size for reference.


    Q2: What is the warranty of the parts after I purchase?
    A2: The warranty is 6/12 Months based on the item details.


    Q3: How can I pay the order?
    A3: We can receive payment through T/T, Western Union, Paypal(for small amount),Alibaba trade assurance.


    Q4: When will get the items after I place order?
    A4: Once your payment is confirmed, we will arrange the goods within 24 hours, if not in stock ,we will inform you before placing the order.


    Q5: How can I do if there is something wrong with the items?
    A5: First of all , I have confidence in the quality of our products ,if you really found something wrong ,pls provide the old photo for us. After it is confirmed, pls return to us , we will offer the correct item.


    Q6: What is your main products?
    A6: We are specialized in the excavator spare parts, such as travel motor gearbox/assy/parts, swing gearbox/assy/motor/parts, hydraulic pump assy/parts, gear parts. If you need other excavator parts, we also can supply as your requirements.
