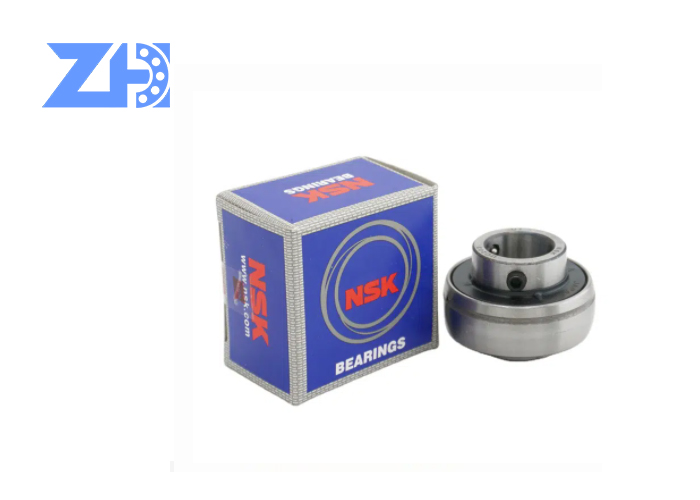

    40mm Bore Diameter High Grade Insert Ball Bearing UC308 insert ball bearing

    Ask Lasest Price
    Brand Name : QIEAL ZH
    Model Number : UC308
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union,, D/P
    Supply Ability : 600 per day
    Delivery Time : 2-7 work days
    • Product Details
    • Company Profile

    40mm Bore Diameter High Grade Insert Ball Bearing UC308 insert ball bearing


    40mm Bore Diameter High Grade Insert Ball Bearing UC308


    Insert Ball Bearing

    Its basic performance should be similar to that of deep groove ball bearings, but because this kind of bearings are mostly used in rough machinery, the installation and positioning are not accurate enough, the axis of the shaft and the seat hole are poorly aligned, or the shaft is long and has large deflection In such cases, the accuracy of the bearing itself is not high enough, and some structures are relatively rough. Therefore, the actual performance of the deep groove ball bearing of the same specifiexcavatorion will be discounted. For example: the outer spherical ball bearing with top wire is used in the through shaft with large rigidity difference and large deflection. This kind of bearing has seal rings on both sides, which can strictly prevent the intrusion of dirt. It has been filled with a proper amount of lubricant at the factory and does not need to be cleaned before installation. , No need to add lubricant, when the jack screw on the protruding end of the bearing inner ring is tightened on the shaft. The allowable axial load shall not exceed 20% of the rated dynamic load. The performance of the outer spherical ball bearing with eccentric sleeve and the outer spherical bearing with top wire are basically the same, except that the top wire is not on the inner ring, but on the eccentric sleeve. The inner hole of the tapered outer spherical ball bearing is a tapered hole with a taper of 1:12, which can be directly installed on a tapered shaft or on an optical shaft without a shoulder with the aid of a tightening bushing, and the bearing clearance can be fine-tuned. Outer spherical bearings are preferentially suitable for occasions that require simple equipment and parts, such as agricultural machinery, transportation systems or construction machinery.

    Items
    Old Numbers
    Size(mm)
    Weight(kg)
    UC305
    90605
    25mm(id), 62mm(OD), 38mm(B)
    0.44kg
    UC306
    90606
    30mm(id), 72mm(OD), 43mm(B)
    0.56kg
    UC307
    90607
    35mm(id), 80mm(OD), 48mm(B)
    0.71kg
    UC308
    90608
    40mm(id), 90mm(OD), 52mm(B)
    1kg
    UC309
    90609
    45mm(id), 100mm(OD), 57mm(B)
    1.2kg
    UC310
    90610
    50mm(id), 110mm(OD), 61mm(B)
    1.6kg
    UC311
    90611
    55mm(id), 120mm(OD), 66mm(B)
    2.01kg
    UC312
    90612
    60mm(id), 130mm(OD), 71mm(B)
    2.5kg
    UC313
    90613
    65mm(id), 140mm(OD), 75mm(B)
    3.15kg
    UC314
    90614
    70mm(id), 150mm(OD), 78mm(B)
    3.83kg
    UC315
    90615
    75mm(id), 160mm(OD), 82mm(B)
    4.5kg
    UC316
    90616
    80mm(id), 170mm(OD), 86mm(B)
    5.4kg
    UC317
    90617
    85mm(id), 180mm(OD), 96mm(B)
    6.5kg
    UC318
    90618
    90mm(id), 190mm(OD), 96mm(B)
    7.3kg
    UC319
    90619
    95mm(id), 200mm(OD), 103mm(B)
    8.7kg
    UC320
    90620
    100mm(id), 215mm(OD), 108mm(B)
    10.8kg
    UC321
    90621
    105mm(id), 225mm(OD), 112mm(B)
    12.2kg
    UC322
    90622
    110mm(id), 240mm(OD), 117mm(B)
    14.3kg
    UC324
    90624
    120mm(id), 260mm(OD), 126mm(B)
    18.5kg
    UC326
    90626
    130mm(id), 280mm(OD), 135mm(B)
    23kg
    UC328
    90628
    140mm(id), 300mm(OD), 145mm(B)
    28.5kg

    Packing &Shipping

    FAQ
    Q:Are you factory or trading company?
    A:We are factory.
    Q:Where is your factory loexcavatored in?
    A:Linqing.
    Q:Could i get samples before order?
    A:Yes,sure,we can send you samples,let you check quality first.
    Q:What is your MOQ?
    A:one piece.
    Q:What is your delivery time?
    A:For small quantity we have in the stock,large quantity need 10-15 days.
    Q:What is your payment terms?
    A:Western Union,TT,Paypal.
    Q:Do you supply OEM?
    A:Sure
